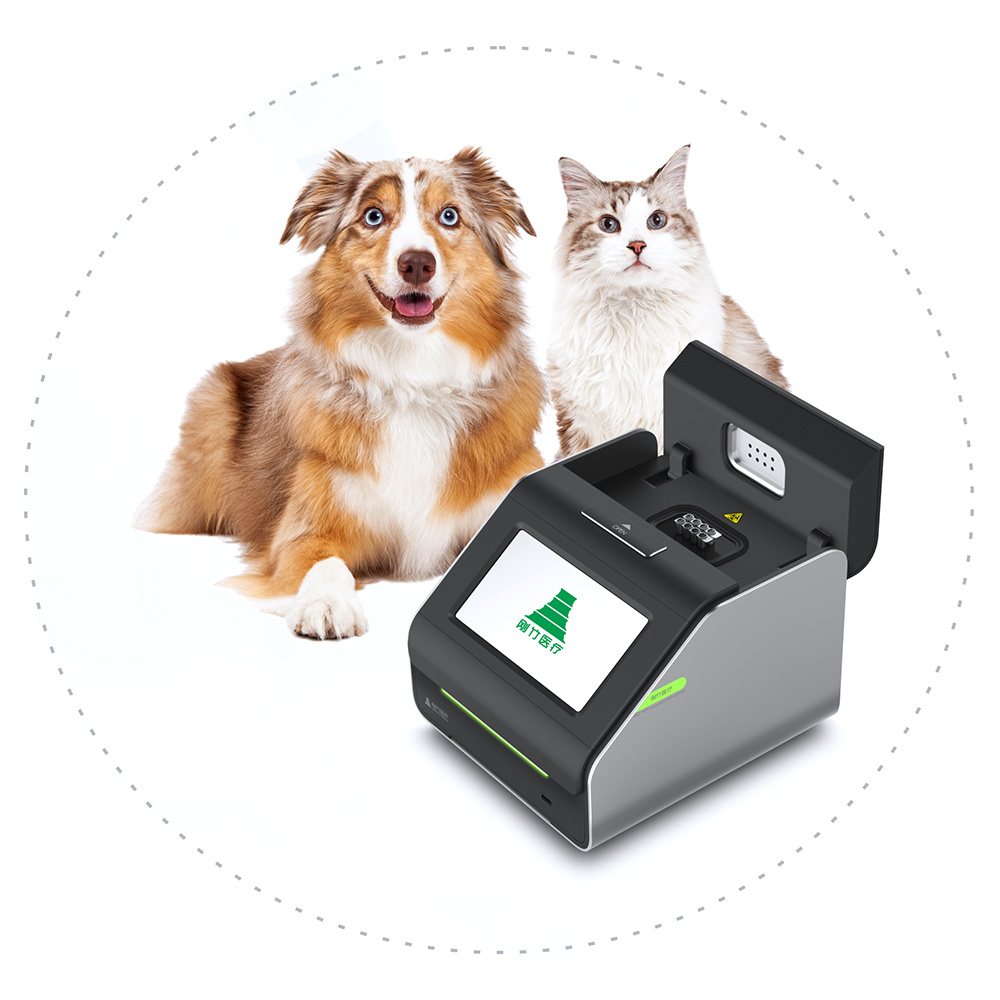

Portable Real-time PCR Instrument
GANGZHUMED focuses on the pet medical industry and develops disease diagnosis products suitable for the diagnosis mode of pet hospitals. The equipment is based on the PCR-TaqMan technology. The sensitivity and specificity of this method are selected from the existing pet pathogen diagnosis methods to ensure the effectiveness and professionalism of the detection results.
- Product Details
- Specifications
- Product Data
- Product Purchase
-
- Commodity name: Portable Real-time PCR Instrument
- Commodity ID: GZ-8Plus
GANGZHUMED focuses on the pet medical industry and develops disease diagnosis products suitable for the diagnosis mode of pet hospitals. The equipment is based on the PCR-TaqMan technology. The sensitivity and specificity of this method are selected from the existing pet pathogen diagnosis methods to ensure the effectiveness and professionalism of the detection results.
Provide pet hospitals with diagnostic solutions for pet infectious diseases, which is the first choice for disease diagnosis
● Using PCR-TaqMan technology, it provides high sensitivity and high specificity to ensure the accuracy of test results, and is the gold standard for pathogen detection.
● Help pet owners to understand the potential potential diseases of their pets in advance, screen for risks, and achieve early detection and early treatment.
● Assist doctors in accurate diagnosis and targeted treatment of cats and dogs with diseases.
▌Product Advantages
Can measure 8 samples and 16 items at the same time
Small size
Precise temperature control system
Support WiFi data transmission
Cloud data management system
One-click generation of inspection reports
▌Instrument parameters
Basic parameters size 268*236*188 mm Power frequency 50Hz-60Hz voltage AC 110V/220V Communication Interface WiFi, USB weight 4.5 Kg Sample size 8 holes*0.2ml Use environment temperature 10°°C-35°C Atmospheric pressure standard atmospheric pressure humidity 10%-95%RH, no condensation altitude Below 2000 meters System Performance

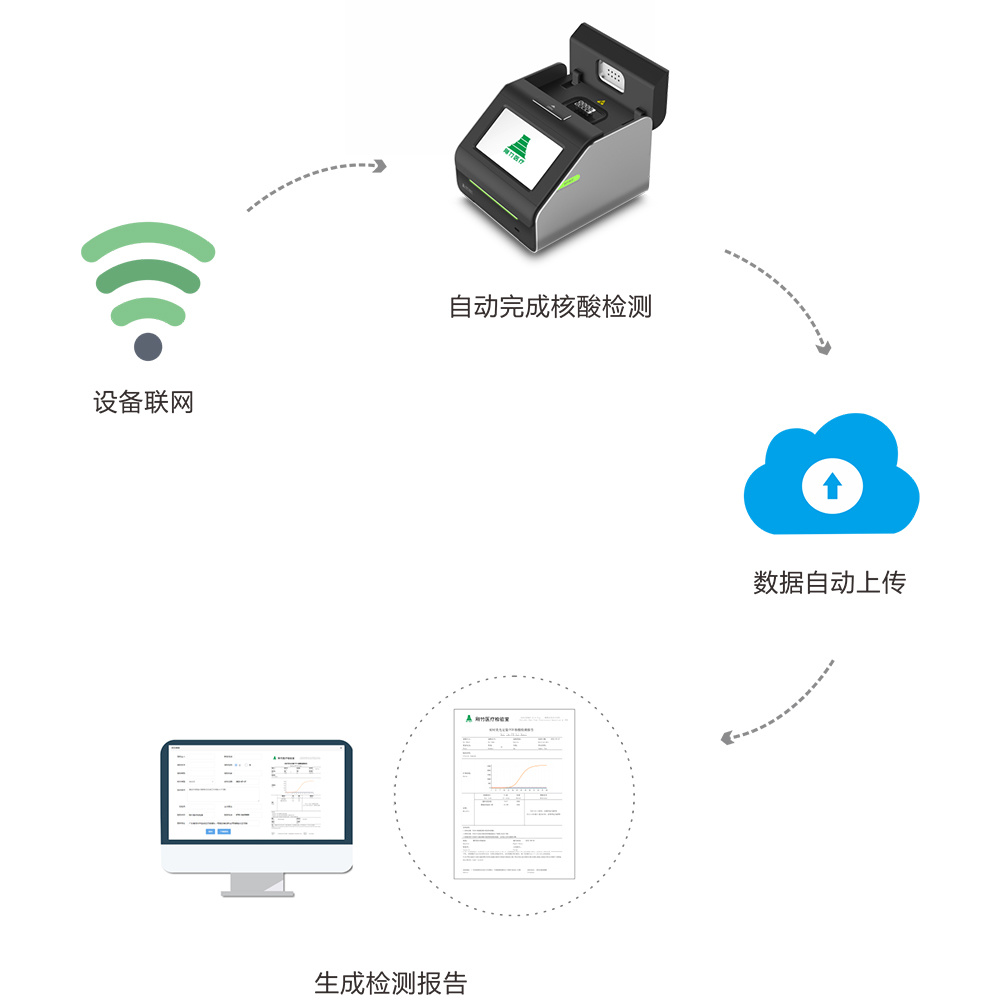

Fluorescence Detectionlight source High Brightness LED Detector PD Sample Linear Range 10-1E10 copy Sample Linearity R≥0.99 Thermal parameters temperature accuracy ±0.25℃ Temperature control accuracy ±0.1°℃ temperature uniformity ±0.25°C Heating and cooling rate 6°C/S Optical parameters Excitation wavelength of the first channel 495nm±10nm The second channel excitation wavelength 535nm±10nm The detection wavelength of the first channel 520nm±10nm Second channel detection wavelength 570nm±10nm ▌Equipment Workflow
More Products
GANGZHUMED focuses on the pet medical industry and develops disease diagnosis products suitable for the diagnosis mode of pet hospitals. The equipment is based on the PCR-TaqMan technology. The sensitivity and specificity of this method are selected from the existing pet pathogen diagnosis methods to ensure the effectiveness and professionalism of the detection results.
Gangzhu Medical GANGZHUMED focuses on the pet medical industry and develops disease diagnosis products suitable for the diagnosis mode of pet hospitals. The equipment is based on the PCR-TaqMan technology. The sensitivity and specificity of this method are selected from the existing pet pathogen diagnosis methods to ensure the effectiveness and professionalism of the detection results.
The PCR reagent for infectious disease detection launched by Gangzhu Medical Institute adopts the advanced new diagnostic reagent form - PCR full freeze drying system. It includes reagents required for extraction and amplification. The extraction reagent adopts the rapid nucleic acid extraction technology based on magnetic bead method, which is simple and fast to ensure the accuracy of diagnostic results. The amplification reagent adopts vacuum freeze drying technology, including enzymes, primers, probes, dNTPs required for PCR reaction, various ions required for reaction, and the stability of dry PCR reagent for better storage and transportation.
